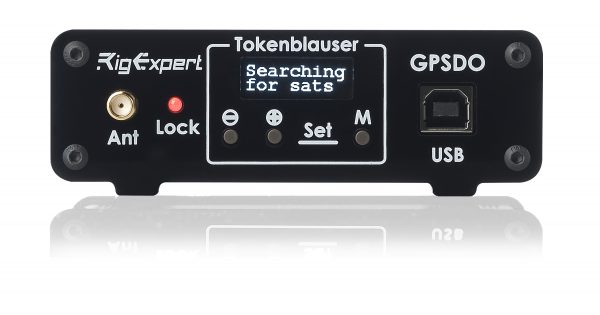

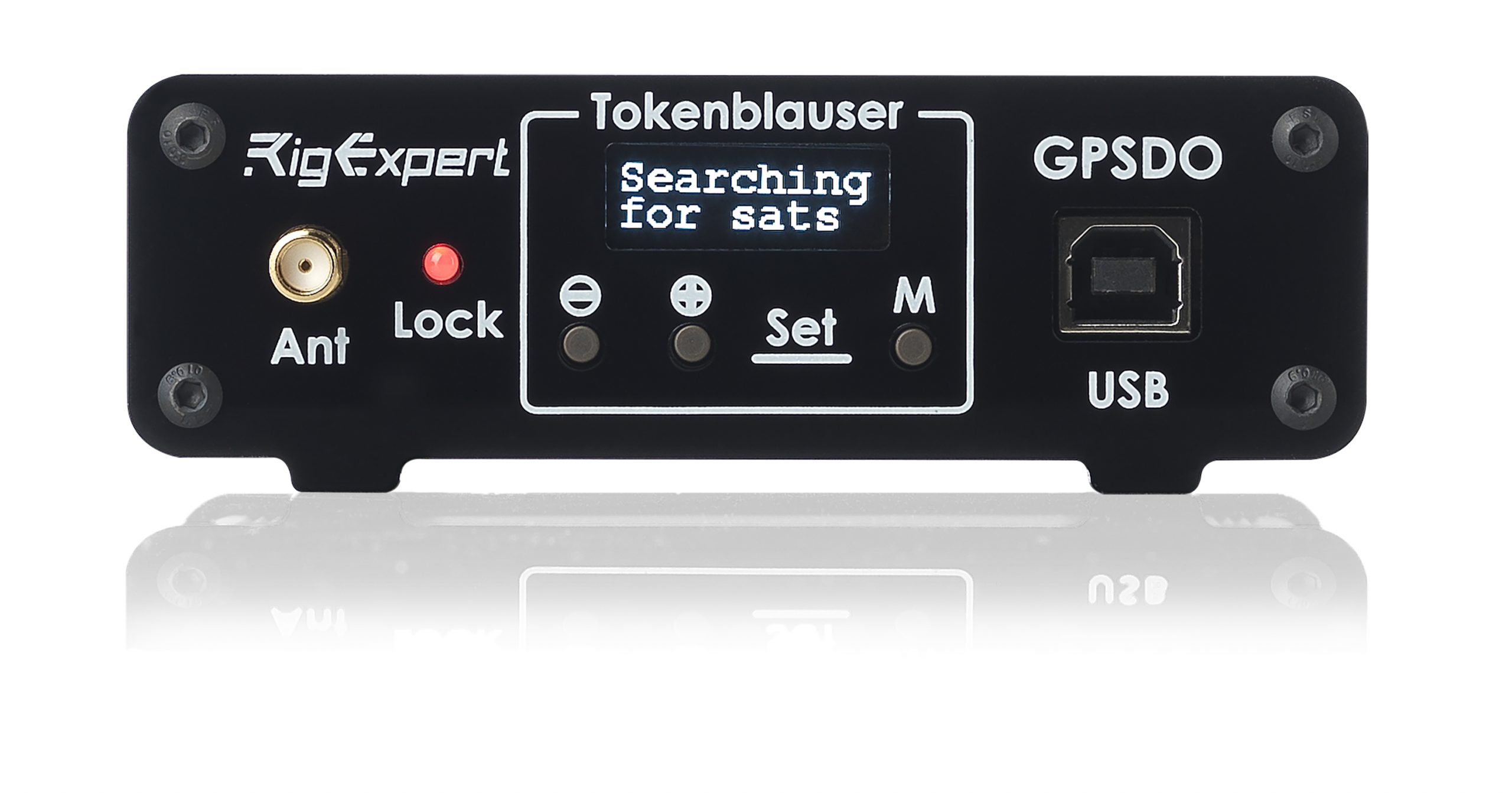

GPSDO 10 MHz Time and Frequency Reference

Number of PLL synthesized outputs 4
Output frequency range 0.16 to 200/350/710 MHz (depending on a PLL type)
Frequency setting With 1 Hz steps (or very fine tuning with 1 ppt steps)
Auxiliary output 10 MHz
Frequemcy stability 0.001 ppm or better
Signal levels 3.3V CMOS logic
Output connectors BNC
GNSS antenna type External, active, 3.3V
GNSS constellations GPS, Galileo
Dimensions 105mm x 105mm x 35mm (enclosure)
100mm x 100mm x 25mm (PCB)
