Description
Prossimamente dal 2025

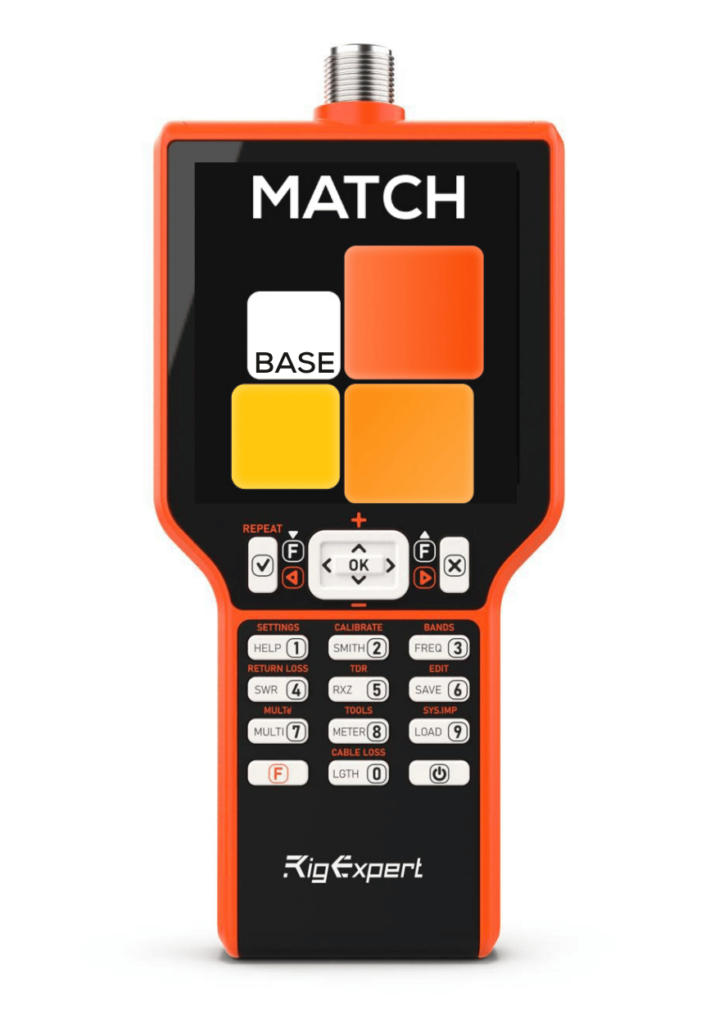

MATCH Upgradeable Antenna AGGIONABILE con Licenze
Frequency range
- 0.1 to 70 MHz and the range can be upgraded to 230 MHz (Advance license) and 500 MHz (RFE license)
Operation modes
- R, X chart
- Return loss chart
- Smith chart (Advanced, RFE licenses)
- SWR at single or multiple frequencies
- SWR chart
- SWR, return loss, R, X, Z, L, C at single frequency
- Time Domain Reflectometery (TDR) chart (RFE License)
Tools
- cable loss and characteristic impedance measurement (Advanced, RFE licenses)
- Length & velocity factor (Advanced, RFE licenses)
- OSL calibration (Advanced, RFE licences)
- Self-test
- Stub tuner (Advanced, RFE licenses)
- User OSL: 10 profiles available (RFE license)
Factory OSL
- Yes
Display
- 480×480 color TFT 4.0” LCD display
Built in Helper
- Yes, at the push of a button
Output power
- -10 dBm (at 50 Ohm load)
Output connector
- N-type
Battery (power)
- One Li-Ion battery ICR18650, 2600mAh
Run time
- 2 hours 40 minutes (continuous measurements)
Operating temperature
- -10…60 °C (14…140 °F)
PC/Mobile Interfaces
- USB Type-C
Localizations
- English
- French
- German
- Italian
- Portuguese
- Spanish
- Ukrainian
Dimensions
- 93 × 207 × 37 mm (3.7 × 8.1 × 1.5 in)
Weight
- 341g (12 oz)
