Description

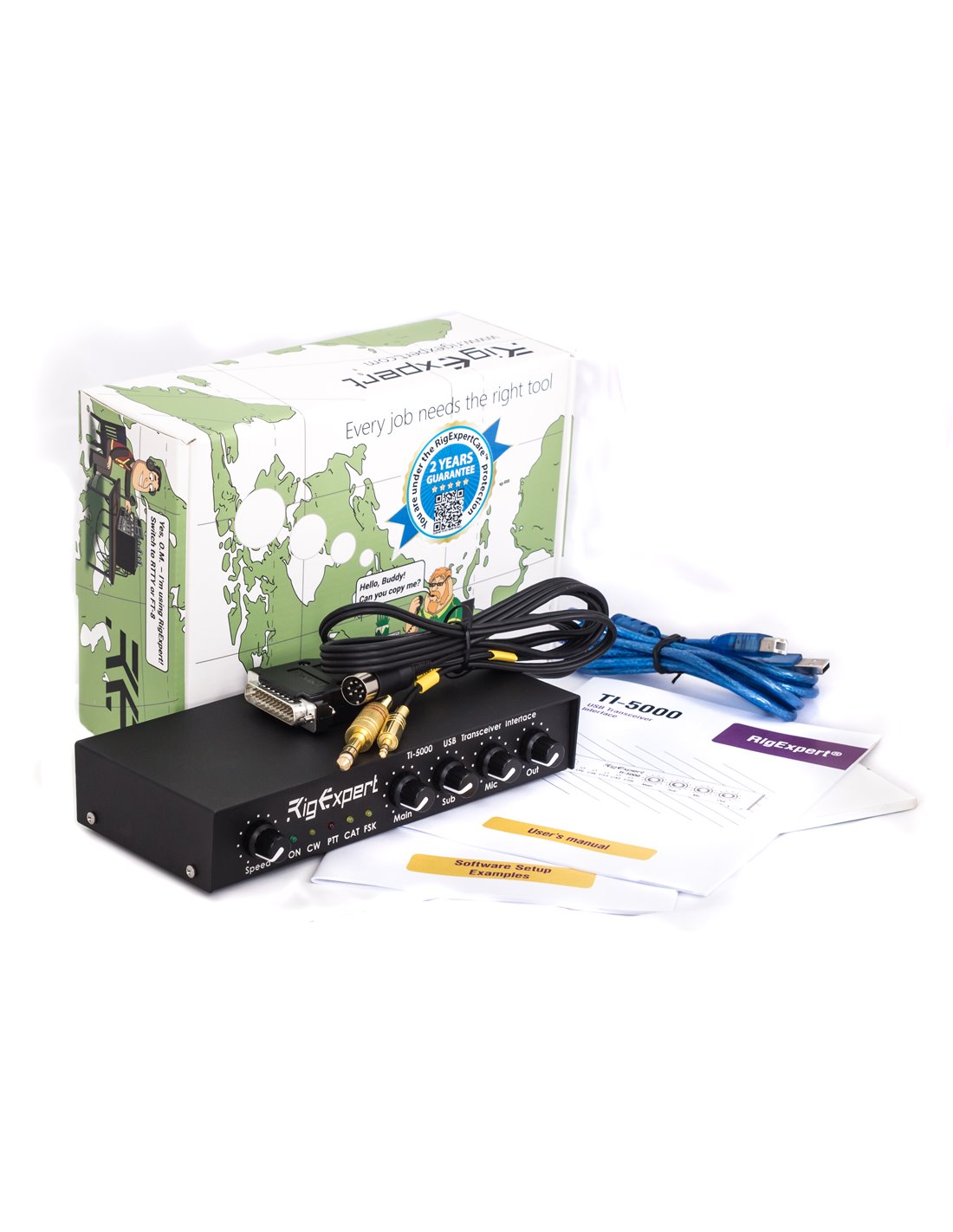

TI-5000 provides:
Transceiver audio interface
Analog audio interface is a connection to transceiver audio output (external speaker connector or line output) and transceiver audio input (microphone connector or line input). Audio interface enables operating digital modes, recording and playing voice, as well as other useful functions (such as measuring levels of a signal from the air) by using a computer. Input (two channels) and output volume levels are adjusted by potentiometers on the front panel of the device.
CAT interface for various transceiver models
CAT (Computer Aided Transceiver) system provides control of transceiver frequency, operating mode and other functions by computer software. Normally, modern transceivers have serial (with various signal levels) link providing CAT interface.In RigExpert TI-5000, CAT interface port is recognized as a COM port by computer software.
FSK output
FSK (Frequency Shift Keying) is a popular method of transmitting digital messages over radio primarily used in radioteletype (RTTY) mode. Most transceivers provide FSK modulator feature to make the RTTY signal stable and clear.A separate COM port is assigned for the FSK output when using RigExpert TI-5000.
PTT and CW output functions
Transceivers provide PTT (Push To Talk) and CW (Continuous Wave) keyer inputs to allow setting the transmitter on or off.In RigExpert TI-5000, PTT and CW outputs are assigned to the RTS and DTR lines of a separate COM port.
CW keyer
Independent keyer paddle input plus built-in RigExpert implementation of WinKey with separate virtual COM port for WinKey.
Footswitch input
Microphone input with QSO Recording option and level control
Plug-and-Play configuration
Windows/MacOS/Linux compatible
Compatible with any HAM Radio software: MixW, MMTTY, WSJT, etc.
Warranty coverage by the RigExpertCare™
